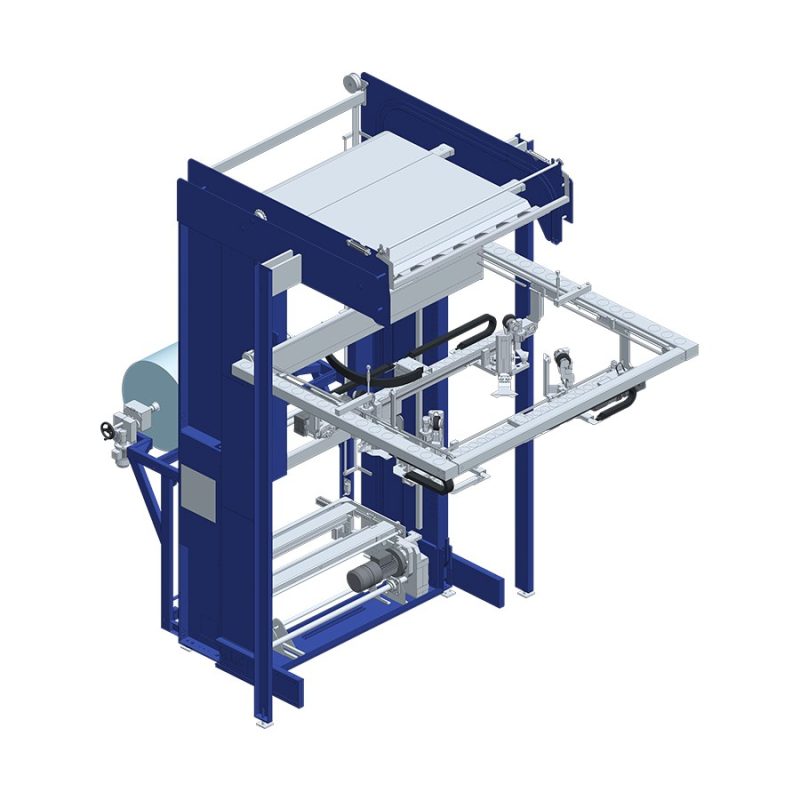

      PIS44 Stretch Hooding System

      The PIS44 stretch hooding machine is an automatic, single work station for packaging operations using stretch film.

      The machine uses coils of tubular elastic film with side gussets to package differently sized packs.

      IS44 has been designed for a high performance (up to 100 packs/h) while keeping a high-quality of the packaged product.

      With its innovative coil holder it is possible to prepare the coil which will go into operation without having to stop the machine.

      For maintenance purposes, the operator can completely and easily access machine components, as they are either at ground level or can be reached from a standing or seated ground position.

      ADVANTAGES:

      • High performance: up to 100 packs/h
      • No down time during coil replacement
      • Energy saving: the stretch film used for the packaging does not need to be heated.
      • Stability of the pack: the packaging with stretch film is very tight, so that even unstable packages remain well compacted.
      • The water-proof and dust-proof hood protects the products against adverse weather conditions and thefts.
      • Environment friendly: less film consumption = less waste.
      • Film Type: polyethylene stretch
      • Thickness: 50 ÷ 180 micron
      • Max Coils Diameter: 700 mm (Optional 1000 mm)
      • Max Coils Weight: 400 kg
      • Minimum Conveyors Height: 500 mm
      • Electrical Power Supply: 400 V – 50 Hz threephase + neutral
      • Installed Power: 9 kW
      • Air Pressure: 5,5 – 6,5 bar – 60 Nl / cycle
