Load Securement

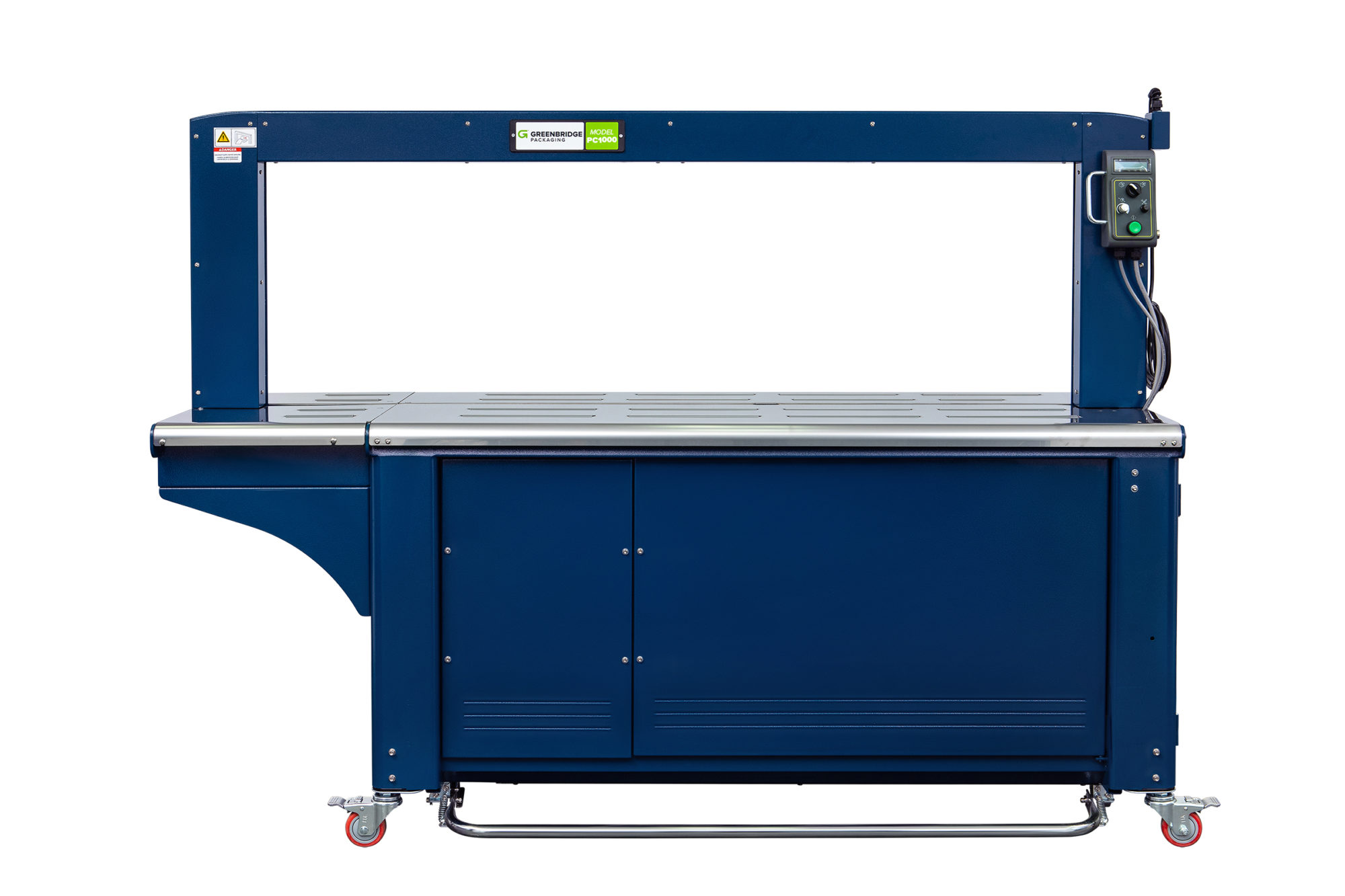

PC1000 Automatic Strapping Machine

The PC1000 is an innovative high speed automatic strapping machine that delivers optimal performance, high cycle speed and easy maintenance. This machine is the most cost effective solution to your strapping requirements in its class today.

Features

  • Cycle speed up to 65 straps per minute
  • German DC brushless motor technology
  • No belt, clutches, or pulleys. 30% fewer parts
  • Less maintenance
  • Waist-high quick chance coil and strap feed
  • Easy-access operating control panel
  • Front foot-bar pedal plus movable foot switch
  • One-piece strap chute
  • Sensor-controlled heater
  • End of coil strap ejector/loop ejector
  • Electronic brake
  • Table height adjusts from 32″ to 36″
  • Lockable casters
Cycle Rate Up to 65 straps per minute
Arch Size 22” x 15”
Package Weight Up to 100 lbs.
Strap Tension Up to 100 lbs.
Polypropylene Strap ¼”, 3/8”, ½”
5mm, 6mm, 9mm, 12mm
Electrical Requirements 110V 60Hz 1 Phase
Shipping Weight 450 lbs.
Optional Photo eye activation

Capable of using Greenbridge extra-long length coils.
