Load Securement

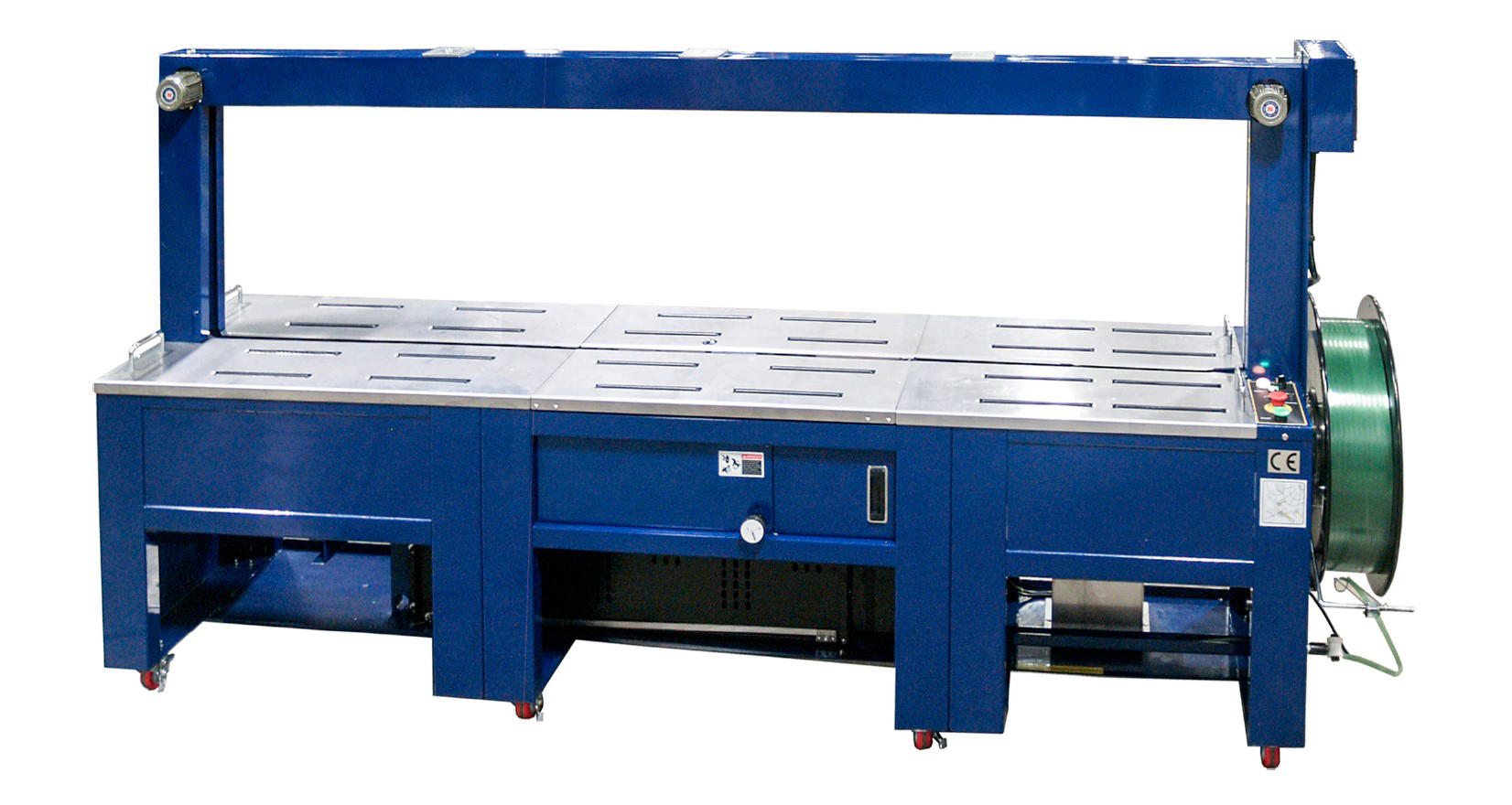

PC9800 Automatic Strapping Machine

The PC 9800 is designed for precision-controlled strapping on larger products like collapsed cartons, windows and doors. It run either polypropylene or polyester strapping to accommodate a variety of applications. Ideally suited for automotive industry, lumber, windows and doors, and the protein industry.

Features

  • Auto strap load
  • Mitsubishi PLC
  • Servo motor powered
  • 7″ Delta HMI
  • Loop ejector
  • Easy access hinged tabletops with rollers standard
  • Utilizes larger 16” x 6” core coils
  • Runs PP or PET/ Set through the HMI control panel
  • Central heat seal
Cycle Rate Up to 32 straps per minute
Arch Sizes 84” to 135”
Package Weight Up to 200 lbs.
Table Height 31.5”
Core Size 16” x 6”
Polypropylene/Polyester Strap Sizes 3/8″, ½”
Electrical Requirements 110V 60Hz 1 Phase, 220V-9Ph or 440V-3Ph
Shipping Weight 575 lbs. (varies with arch)
