Load Securement

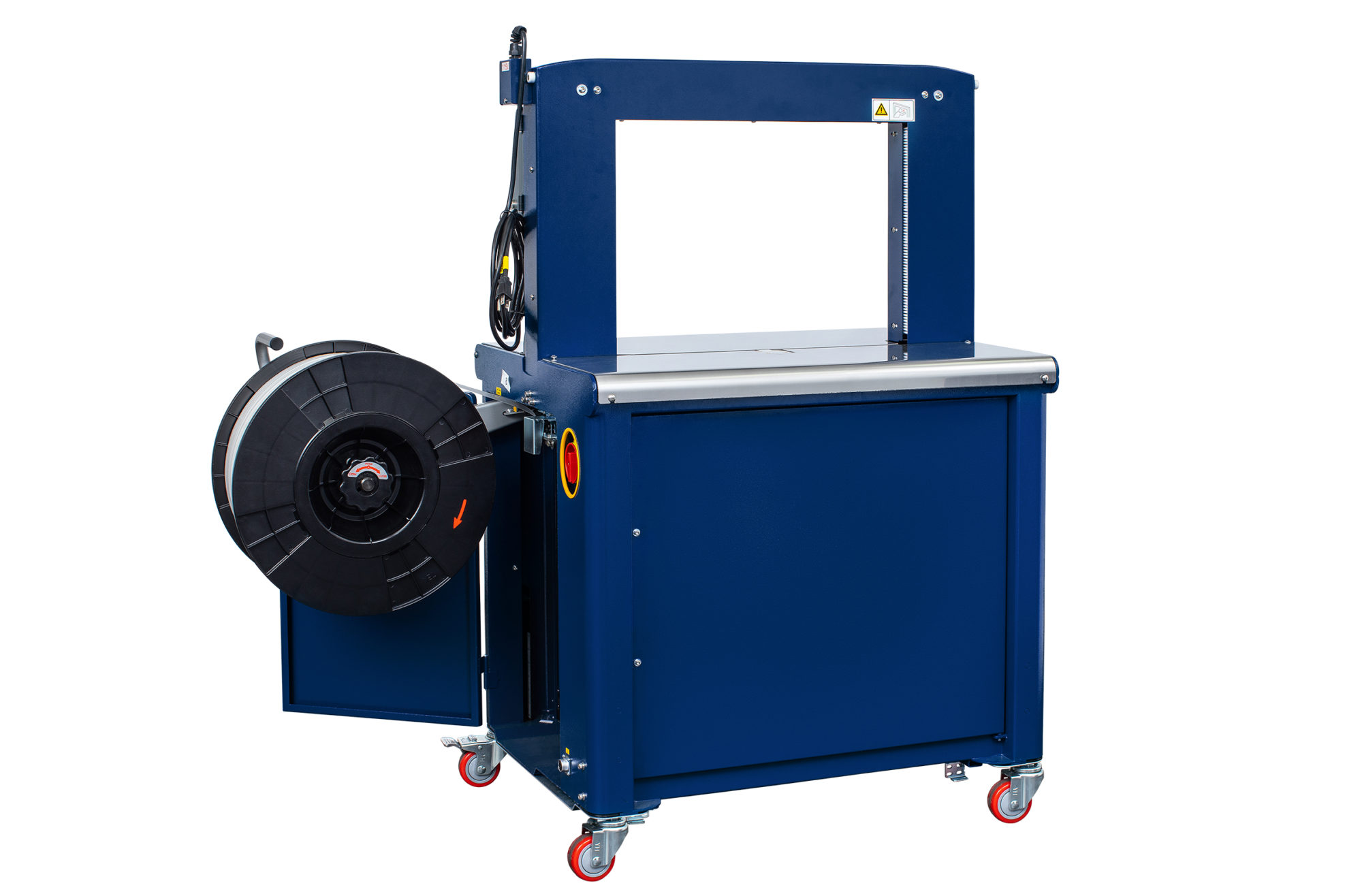

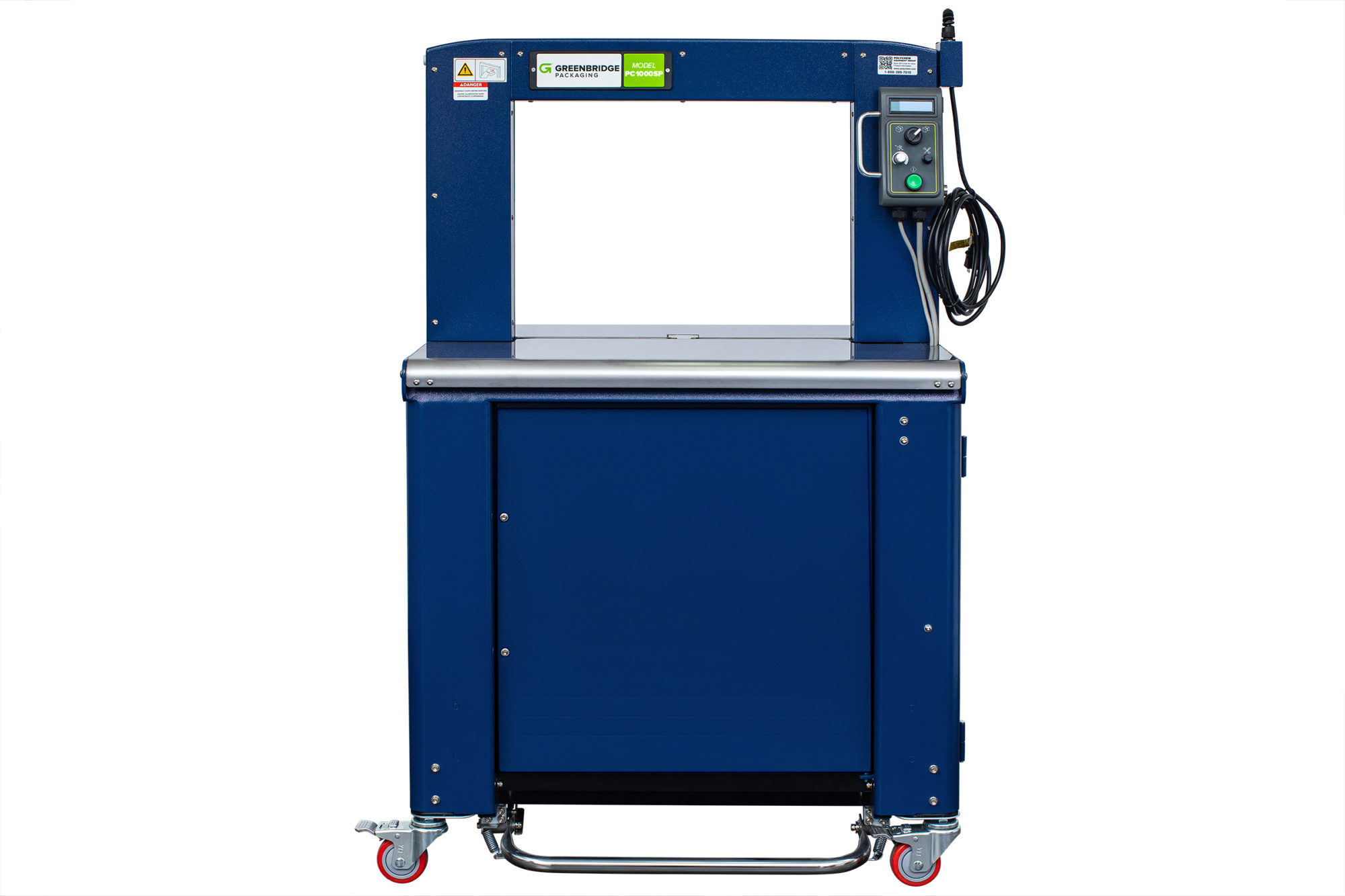

PC1000SP Small Package

High-speed PC1000 series arch machines for strapping packages as small as 1.7” x 3/8”. The most cost effective strapping machine in its class today.

Features

  • Up to 65 straps per minute (depending on arch size)
  • German DC brushless motor technology
  • No belts, clutches or pulleys
  • 30% fewer parts = less maintenance
  • Waist-high quick change coil and strap feed
  • Easy access operating control panel
  • Easy access strap chute-no tools required
  • Front foot-bar pedal plus movable foot switch
  • One-piece strap chute
  • Sensor-controlled heater
  • End of coil strap ejector/loop ejector
  • Electronic brake/Auto loader
  • Table height adjusts from 32″ to 36″
  • Lockable casters
Cycle Rate Up to 65 straps per minute
Standard Arch Size  21” x 16”
Package Weight Up to 100 lbs.
Strap Tension Up to 100 lbs.
Polypropylene Strap 3/8”
5mm, 6mm, 9mm
Core Size 8” x 8 “only
Electrical Requirements 110V 60Hz 1 Phase
Shipping Weight 450 lbs.
Optional Photo eye activation
