Load Securement

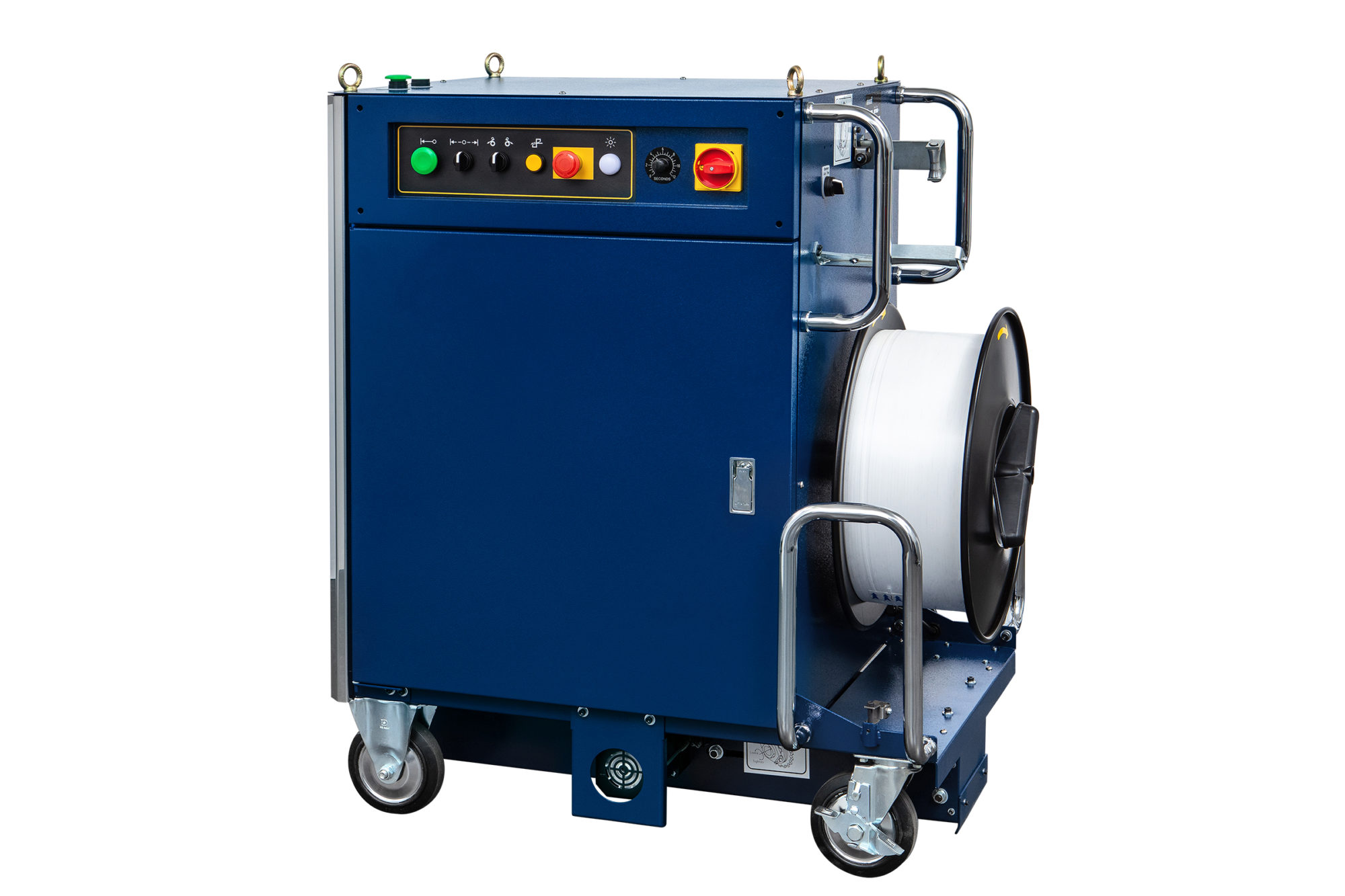

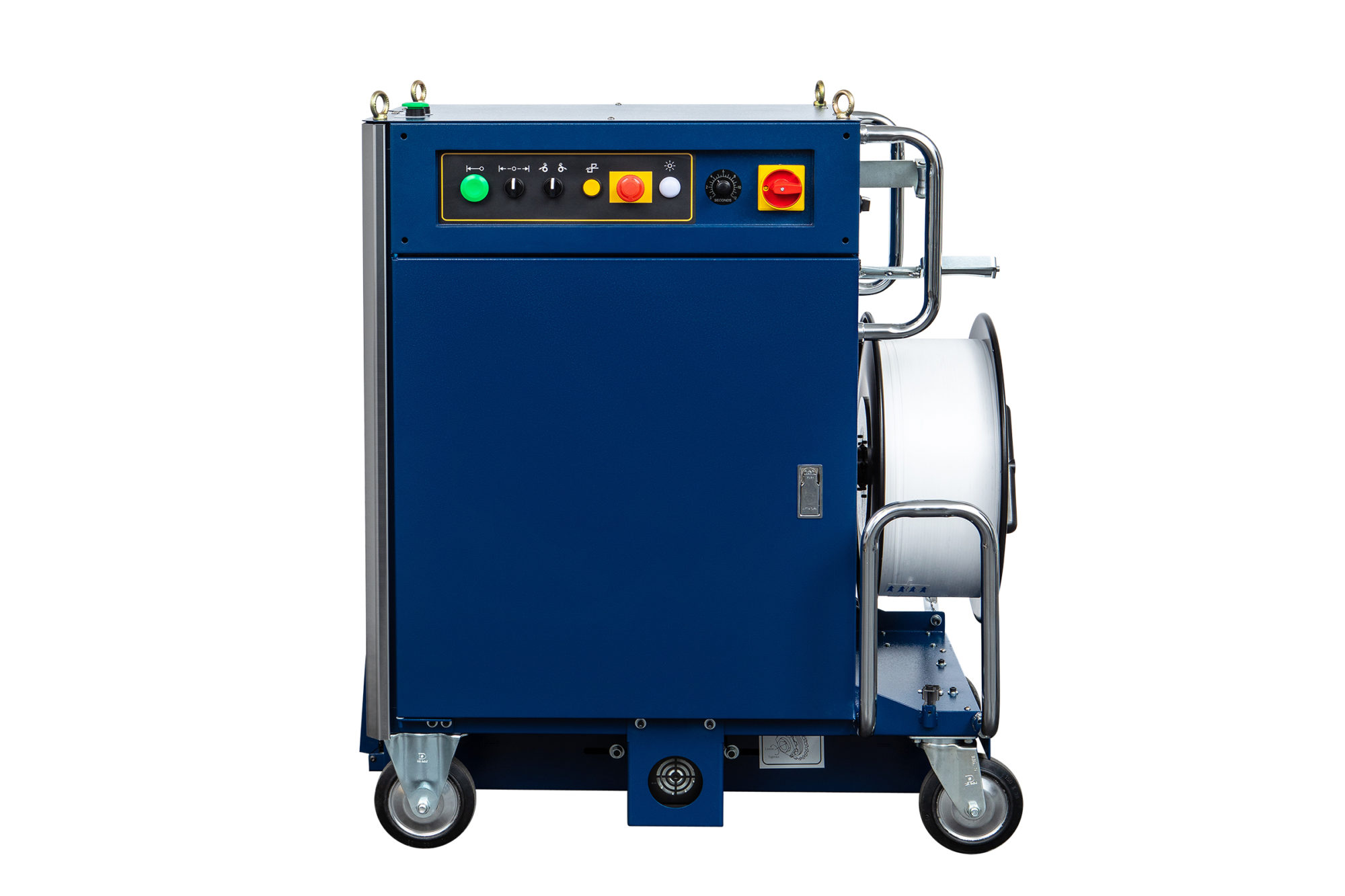

PC650RPS Portable Semi-Automatic Pallet Strapper

The portable PC650RPS retractable pallet strapper is ideal for low to moderate use pallet strapping. The retractable bayonet reduces required floor space, improves maneuverability and protects the bayonet from damage.

Features

  • Intuitive control panel with centralized start button. Insert the strap into the machine and the machine does the rest
  • Bayonet automatically extends through pallet void and dispenses the desired amount of the strap
  • Bayonet automatically retracts when strapping cycle is complete
  • Easy to load coil location with waist level strap threading
  • Extra-large 6″ rubber casters for the ultimate in maneuverability
  • Minimum load height 24”
  • Minimum 3-1/2” pallet void is required with a max ¾” base pallet board
Cycle Rate 2.5 sec/strap (60Hz)
Minimum Load Height 24”
Sealing Method Heating element
Reel Outside Diameter 19”
Strap Tension 30-90 lbs.
Table Height 30”
Core Sizes 16” x 6” standard
8” x 8”, 9” x 8” optional
Polypropylene/Polyester  Strap Sizes 3/8″, ½”, 5/8”
9mm, 12mm, 15.5mm
Strap Thickness Up to .030”
Electrical Requirements 110 VAC, 60Hz
Shipping Weight 650 lbs.
